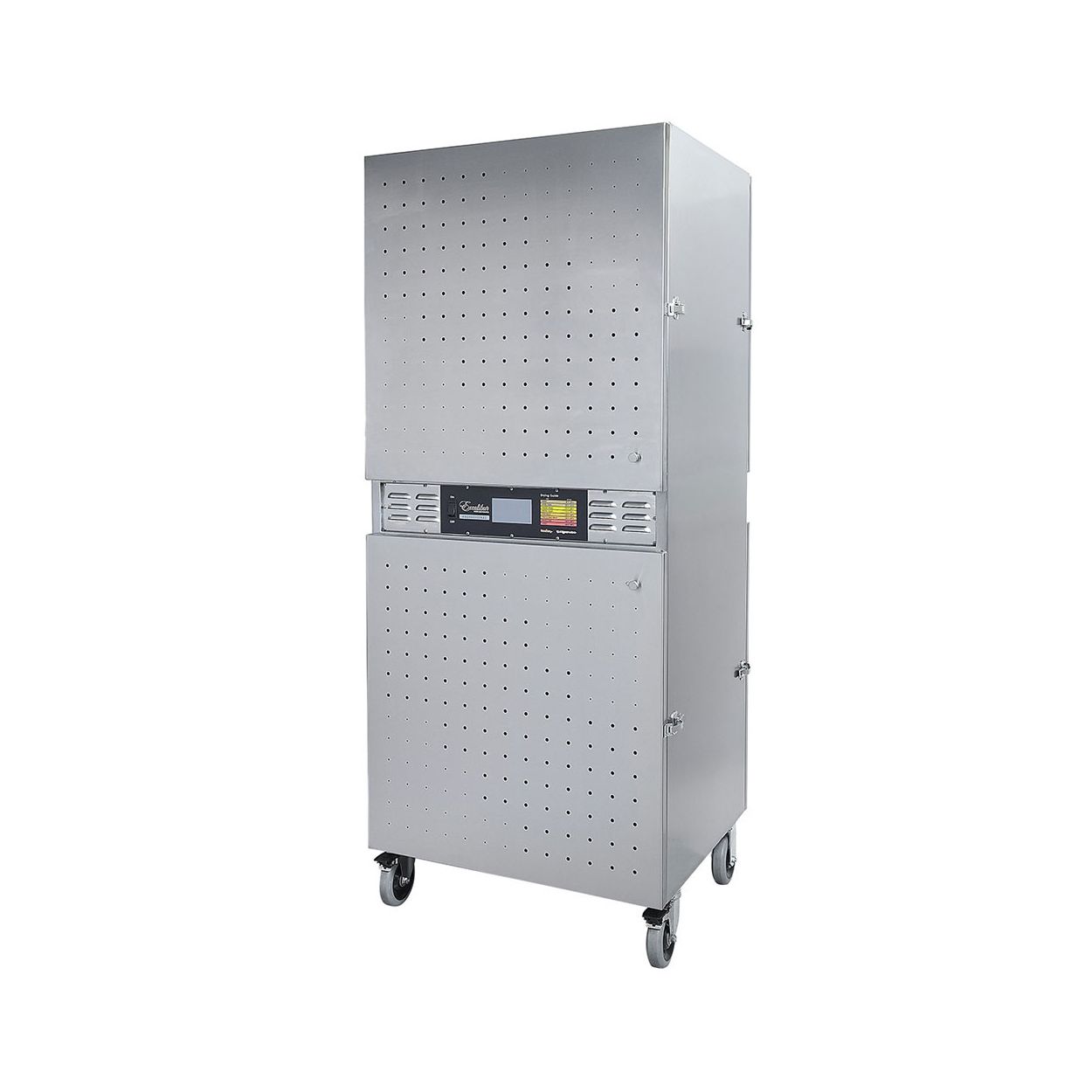

Excalibur Commercial 2 Zone Dehydrator

This unit is available only by special order, with a lead time of around 4 weeks if shipped by air.

Innovative, state-of-the-art, computer controlled commercial dehydrators.

Increase productivity with a massive 12.63m² of shelf space on 42 x 100% high grade stainless steel shelves. Shelves measure approx 66cm x 45cm with 3.2cm space between and come standard with removable FDA Approved Polyscreen inserts. Paraflexx drying sheets are available as additional items.

Fully manufactured and imported from the United States from high quality stainless steel and NSF Approved. Excalibur's Commercial Dehydrators are the perfect solution for many types of businesses. Smaller dehydrators are great for home or starting a business but quickly become time consuming and tiring once your market grows.

This unit is built for the commercial requirements of drying foods of all types, from fruits and vegetables to jerky and yoghurt. It is also popular within the laboratory environment where high capacities of sample dehydration is required. The benefits of purchasing an Excalibur Commercial Dehydrator will far exceed the benefits of doing batch after batch in a small machine. If you are ready to increase production and need a larger capacity dehydrator, the solution is here.

Design Superiority

Excalibur's cumulative dehydrating knowledge has gone into the development of the commercial line of NSF dryers. The innovative multiple motor design creates precision airflow and increased thermal control. The high quality brushed stainless steel units have special features such as:

  • Front Door Dampers - to increase humidity (2 Zone)
  • Removable Front Door - for easy cleaning
  • State of the Art Custom Computer Process Controls - Ethernet controls also available
  • Redundancy Features - to minimise down time
  • Removable Rack Weldments
Broad Versatility

With the 2 Zone Production Model you have the ability to stager batches or dry different products separately from each other. This innovative Dual Zone design gives you the ability to use different temperatures in each zone and increase the versatility of the unit.


The 2 Zone Production Model is designed with efficiency in mind. It comes with standard commercial size drying racks which make it easy to pre-stage and unload product using readily available restaurant carts. In fact, the design is so efficient it dries twice the product as other commercial models while only using about ½ the electricity.


The Excalibur NSF 2 Zone Production Model has the most drying area per dollar than any other model available.

Ease of Cleaning

Excalibur does a lot of cleaning in their state of the art test kitchen so they know how important it is to have commercial appliances that are easy to clean. Their commercial units have the following easy to clean features:

  • Removable doors
  • Smooth radius walls for easy wipe down – No sharp edges
  • Large NSF style wheels make it easy to move the unit to clean under and behind (available on the 2 Zone unit).
  • Back door opens fully to allow thorough cleaning of food zone.
What is NSF and why is it important?

The NSF Mark is your assurance that the product has been tested by one of the most respected independent certification companies in existence today, NSF International. NSF International is The Public Health and Safety Company™, providing public health and safety risk management solutions to companies, governments and consumers around the world.

Most importantly, NSF Certification is not a one-time activity. NSF does not just test a single model of a product and gives its okay. Their certification program requires regular on-site inspections of Excalibur's manufacturing facilities. In addition, the commercial dehydrators are periodically re-tested against the requirements of the most current national health and safety standards.

Why do you need an NSF approved appliance for your business?

The NSF Certification mark ensures that your new commercial appliance has been inspected by a recognised organisation, as you potentially may be inspected by your local or state health department. Many inspectors look for the NSF Mark on your equipment. With equipment such as the Excalibur dehydrators that have passed through strict requirements and inspection, you have one less element to worry about.

How Excalibur® Can Help Your Business Grow
Increase Production

Increase productivity with an incredible 12.63m² of shelf space on 42 x 100% high grade stainless steel drying trays. Comes standard with removable FDA Approved Polyscreen inserts. Paraflexx drying sheets are available as additional items.

Cost Effective

The units draw an economical total of 4,800 watts of single phase electricity. The factory suggests a 30 amp breaker be installed when the unit is hard-wired into its location (must be properly installed by a qualified electrician). The temperature range for drying is between 26°C and 94°C. Repairs and maintenance can be carried out by the user, with further savings to the business. Eight small electric motors and heating elements run the 16.5cm fans inside; these are the same reliable units as found in the domestic appliances. The unit comes with a 1 Year Limited Manufacturer's Warranty (to the initial retail purchaser) if properly installed by a qualified electrician.


This state of the art dehydration unit comes with a programmable digital Computer Control Unit that utilises Temperature Cycling Technology, allowing various Time/Temperature drying profiles and has automatic cool down/shut off feature so you no longer have to manually manipulate drying temperature or timer.

Food Health & Safety Standards

Excalibur® set the standard in food health and safety. Their commercial line of dehydrators leads the market for commercial businesses. Stringent specifications must be met to achieve the NSF Approval Mark and FDA approval, which means one less worry when meeting local Health & Safety regulations. Excalibur's Tray Screen Material is made from FDA Approved Polypropylene #5, which is one of the safest plastics for direct food contact, and the cabinet and trays are made from 100% High Grade Stainless Steel.

The Solution to Your Growing Business Needs

The entire cabinet, inside and out, is constructed of stainless steel: welded and finished to strict NSF specifications to prevent food from getting caught between any seams.

The 2 Zone unit has a Unique Adjustable Sliding Dampener installed in both doors. With proper use, this dampener can be closed to retain moisture during the beginning of a drying process, assisting in the maintaining of a "WET HEAT" environment that is optimal for the destruction of harmful bacteria.

Door, trays and tray supports are removable for easy cleaning.

Motor and fan are connected to a hinged back assembly, which is held to the case with wing nuts, allowing easy access when cleaning.

Computerised digital readout, 99-hour timer and 26°C - 94°C (80°F - 200°F) temperature control with automatic shut off. This readout has adjustable: fan delay, alarm type and beeper cycle. User may also select the readout to display in Celsius or Fahrenheit.

We suggest you hard-wire the unit; a plug can be wired but is not included. If the unit is modified in any way the warranty is void.

Unit Dimensions (W x D x H): 76cm x 76cm x 178cm
Tray Dimensions (W x D): 66cm x 45cm with 3.2cm space between
Total Tray Space: 12.6m² (136ft²)
Weight (net / gross): 136kg / 295kg
Shipping Dimensions: 1 pallet: 91.5cm x 91.5cm x 178cm and 1 pallet: 107cm x 107cm x 86.5cm
Motor Configuration/Speed: 8 x 1 Speed
Wattage: 4800 watts
Voltage: 220-240V
Thermostat: 26°C - 94°C (80°F - 200°F)
Features: Digital 99 hour timer, temperature cycling technology, automatic shut-off, front door dampers, (4) wheels with casters (front 2 are locking), 8 x 16.5cm aluminium fan blades
Entire unit is made from 100% Highest Quality Stainless Steel
Includes: 42 x 66cm x 45cm stainless steel trays, removable FDA approved Polyscreen inserts
Certified: NSF Approved and Certified Unit – Welded and Finished to NSF Standards – FDA Approved Polypropylene Screens
Warranty: 1 year limited
  Made in USA

Shipping of commercial units is to be arranged by the purchaser, although shipping can be quoted at a flat rate if required. The unit is well-packed and palletised.

To arrange your own shipping, please choose the 'Store Pickup' option during checkout.

More Information
Size42 Tray
ColourStainless Steel
Thermostat26°C - 94°C (80°F - 200°F)
Tray Dimensions66cm W x 45cm D with 3.2cm space between
Tray Space12.6m² (136ft²)
Wattage4800 watts
Dimensions76cm W x 76cm D x 178cm H
Weight136kg net / 295kg gross
